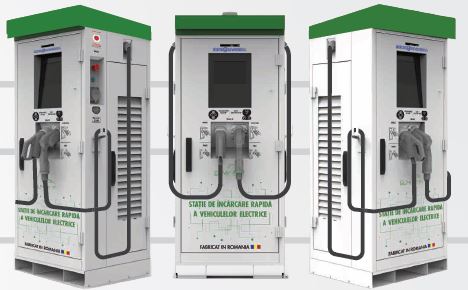

quick charging station SIVE DC 100kW and AC 22kW/AC 43kW
General characteristics
| Traditional scope |
The device is intended for power supply in alternative current of the electric vehicles (EV). |
|
| Connection type | Three phases (3P + N) | |
| Installation type | on the wall or pillar | |
| Maximum charging power | 2 x 22,1 kW to 32A | |
|
Limitation of charging power by indicators |
6 . . . 80A | |
| Number of charging points | 2 | |
| Access control | RFID card/ QR code/ application | |
| Inscription | Bilingual | |
| Weight | 20 kg | |
| Ingress protection | IP54 | |
| Impact protection | IK10 | |
| Operating temperature | Operating temperature | |
| Colour | Grey | |
| Vehicle connection | By cable | By plug |
| Installation type | on the wall or pillar | suspended |
| Sizes | 555 x 353 x 190 mm | 600 x 400 x 200 mm |
| Options |
Installation on concrete tile extension Installation on concrete tile pillar Provided with heating element to increase the operating range The housing can be customized on request Remote charging control, power function and/or time, OCPP 1.6j compatibility Using a single antenna and a single GSM card. Control and communication via graphic interface |
Validation of remote charging control, depending on the power function and/or time, OCPP 1.6j compatibility Using a single antenna and a single GSM card Provided with heating element to increase the operating range
The housing can be customized on request Control and communication via graphic
interface
|
